MGI Dumper 830 V2 Solar PV Panel Lifter

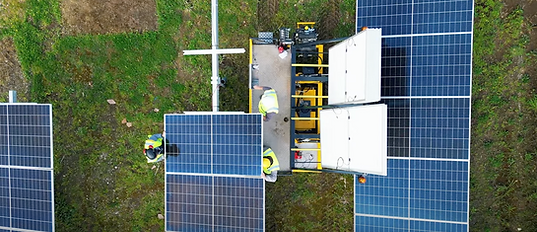

This self-propelled machine is used to transport solar panels within photovoltaic construction sites. Improve safety and easily position solar panels at various heights onto the ground mounting.

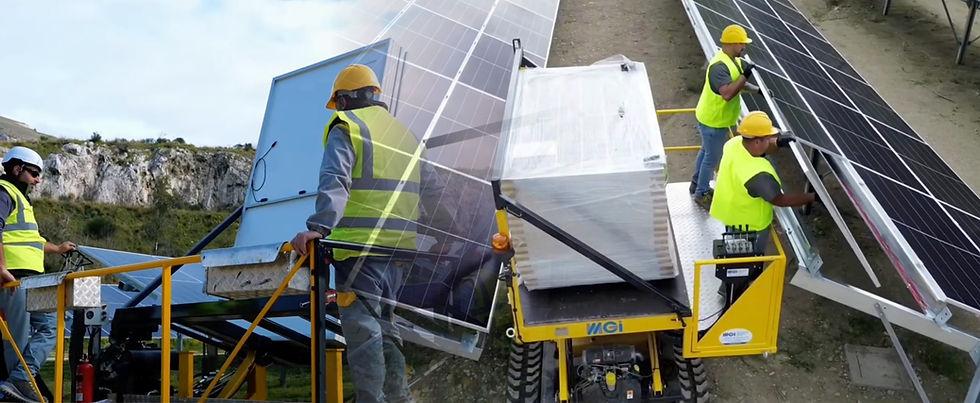

Part 1. MGI Solar PV Panel Carrier in Action

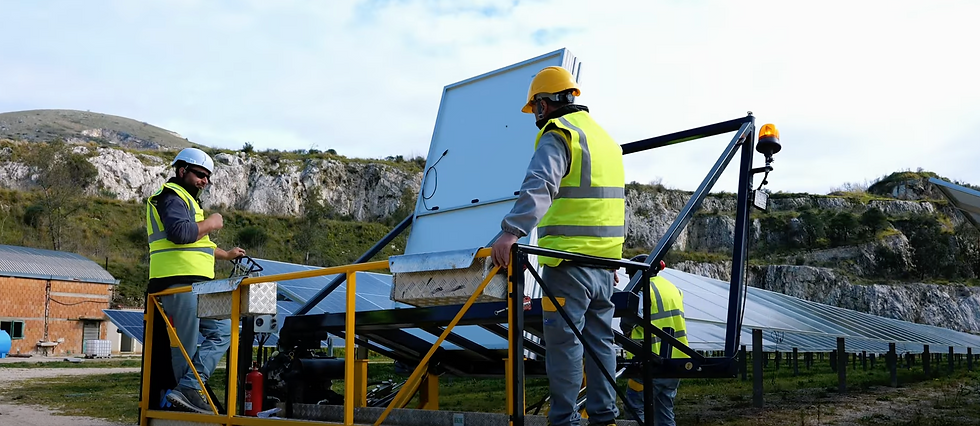

Part 2. MGI Solar PV Panel Carrier in Action
Technical Information:
-
Install at a revolutionary Max: 18° longitudinal incline (upstream structure), 8° longitudinal downstream structure & 15° transverse incline.
-
Maximum operators on platform: Two (2)
-
Max transportable panel load: 2300KG
-
Max size of panels lying horizontally: 2570mm. Vertically it will accommodate two pallets of panels.
-
Solar PV Panel Base: H x 1209mm W x 1255mm
-
Weight of Machine: 2600KG
-
Max height of operation platform: 1950mm
-
Minimum height of operator platform: 860mm
-
Machine dimensions: L x 3044mm x W 2234mm x H 2490mm
-
Machine transport dimensions: L x 3050mm W x 2250mm H x 2256mm
-
Max Speed KM/H: 1st Gear - 2.4 / 2nd Gear - 4.5
-
Fuel Tank Capacity: 45lt
-
Hydraulic Oil Tank Capacity: 45lt
-
Electrical System Voltage: V DC 12
-
Engine: KOHLER ECH-980
-
Engine Power: 28KW @3600RPM
-
Engine Speed: 3000RPM
-
Fuel: Petrol
The ultimate two-operator hydraulic self-propelled solar PV panel lift assister. It will:
-
Reduce PV installation time by over 50%
-
Increase operator safety
-
Simplify every phase of your work
-
Resolve height safety issues in agrivoltaics and solar carport construction
The machine is composed of the following:
-
A tracked carriage that allows the machine to move safely over rough terrain up to 18 degree slopes.
-
A Petrol Kohler Engine (ECH-980)-28 KW power
-
A hydraulic oil system to lift the base and platform (from 860mm base height to 1950mm).
-
A base for transporting and lifting one horizontal pallet or 2 vertical pallets of PV panels up to 2300 Kg weight
-
A work platform for 2 personnel and a control station.
